Description

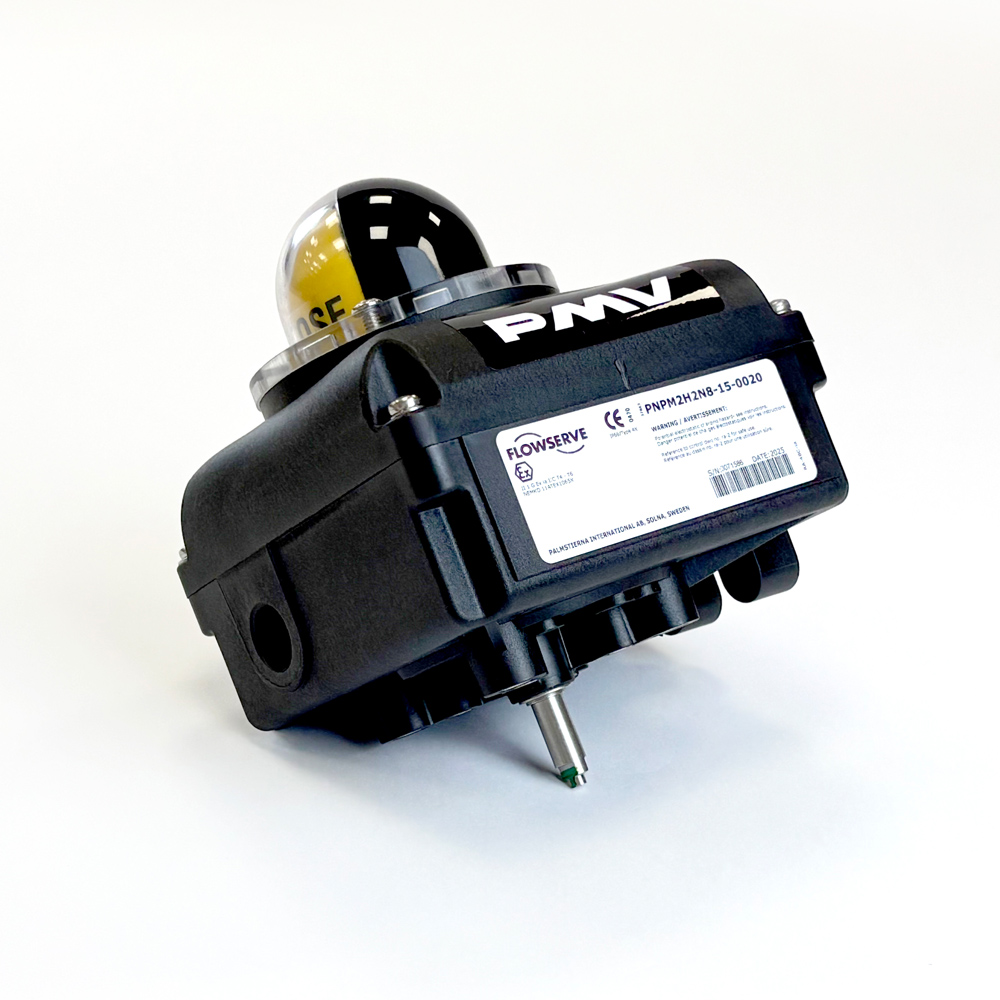

The PMV PNPM2H2N8-15-0020 delivers accurate and dependable position signalling, specifically engineered for performance in harsh, corrosive environments. Its engineered resin enclosure is provided with multiple switch options for versatile application.
A standard UltraDome™ visual indicator provides clear position feedback, with an optional flat-top cover for a lower profile. The PM Series UltraSwitch™ is designed for easy, direct mounting to actuators, supporting both rotary and linear indication and can also function as a junction box for direct solenoid valve connections.
The PM Series UltraSwitch™ withstands the most demanding industrial settings due to its corrosion-resistant, fibreglass-reinforced engineered resin housing. Made from Nylon PA6/PA66, it offers high strength, impact resistance and excellent chemical resistance to solvents, bases and salts. Certified to IP66/NEMA 4/4X standards, the PM Series UltraSwitch™ is approved for use in intrinsically safe and non-incendive hazardous locations.
PNPM2H2N8-15-0020
P PMV
N = Namur VDI/VDE 3845 Shaft
PM = Resin Housing M20x1,5
2 = 2x Open cable entries
H = Black/Yellow UltraDome™
2 = 2 Switches
N8 = NJ2-V3-N PF Namur SIL 2/SIL 3 a
15 = ATEX II 1G Ex ia IIC T4/T5/T6
0 = None
0 = Standard
2 = 2 (Standard)
0 = None
