Description

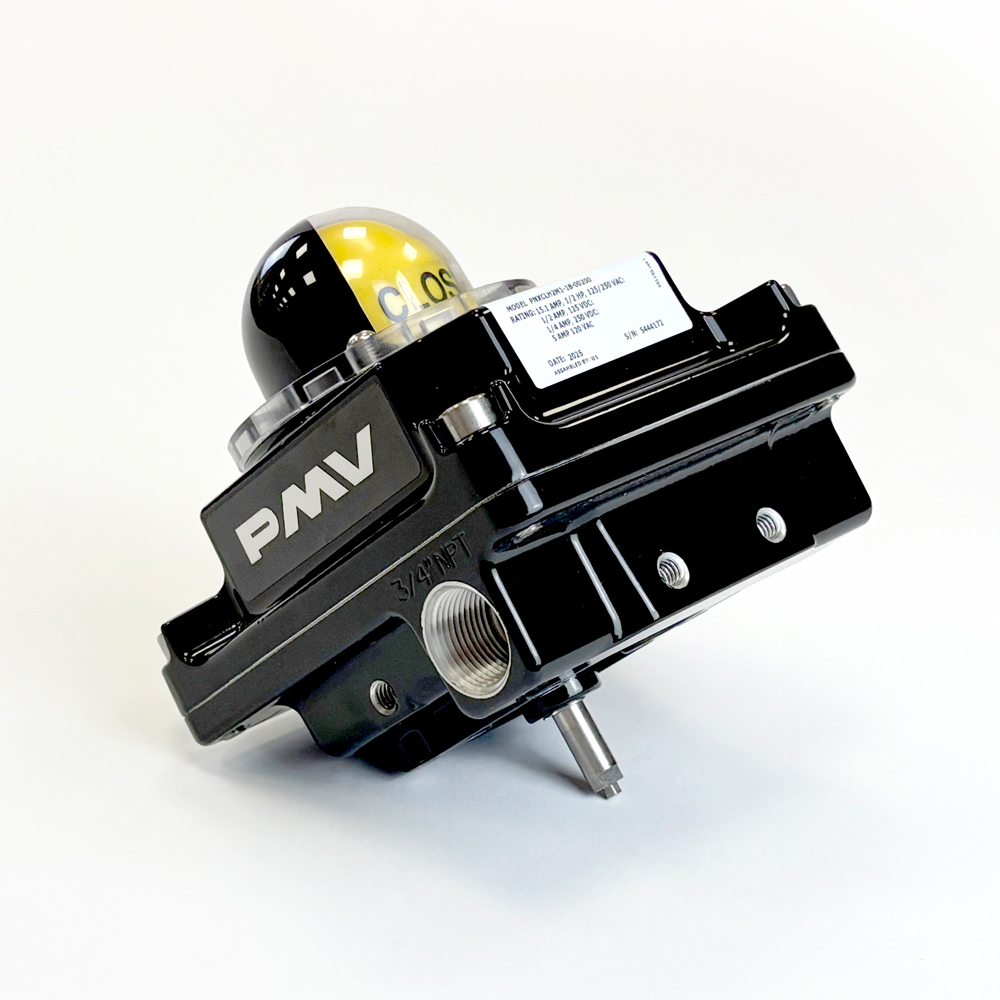

The PMV PNXCLH2M1-18-00200 XCL Series UltraSwitch™ is compact, cost-effective and delivers accurate position signalling in hazardous areas. For remote monitoring, the XCL Series UltraSwitch™ supports a wide range of limit switch configurations, is housed in durable aluminium enclosure and features an optional visual dome indicator. Designed for straightforward mounting on rotary or linear actuators, it can also serve as a junction box for the direct mounting of solenoid valves. A minimum of two open terminals included as standard. With dual conduit entries and pre-wired switches, it’s simple to install and meets IP66 and NEMA 4X standards for weatherproof and explosionproof use.
PNXCLH2M1-18-00200
P = PMV
N = Namur VDI/VDE 3845 Shaft
XCL =Aluminium Housing, Explosionproof / Flameproof, 2×3/4” NPT
H = Black/Yellow UltraDome™
2 = 2 Switches
M1 = SPDT Mechanical Switches 250 VAC 10A (Default E = 0) SIL 3
18 = cCSAus CI.I, Div1, Gr.CD / CI.II, Div1/2, Gr.EFG, CI.III. ATEX II 2GD, Ex d IIB/Ex tD
0 = None
0 = None
2 = 2 (Standard***)
0 = None
0 = Black Polyester Powdercoat
