2645ABYN00022AAA-AR2 Westlock Controls Explosionproof Monitor

Description

2645ABYN00022AAA-AR2 Westlock Controls AccuTrak Position Monitor, 2600 Series Aluminium Enclosure. Black / Yellow Visual Indicator. Namur Shaft, 2 x M20 Conduit Entries. This unit also comes with 2 x V3 Mechanical Switches SPDT Contacts pre-wired to 10 point terminal strip. ATEX / IECEx Dual Certified Explosionproof Ex II 2 G D – Exd IIC.

2645ABYN00022AAA-AR2

26 = 2600 Series = Exd/Flameproof
4 = Westlock’s Standard Beacon: 90degree 1/4 turn

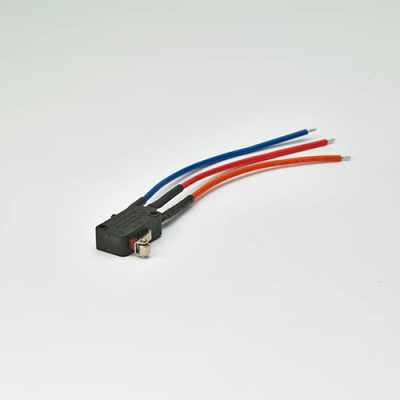

5 = V3 Mechanical Mirco Switches
A = Aluminium Enclosure
BY = Black/Yellow Beacon colour – English Language
N = Namur Shaft
000 = No Special Features
2 = 2x Switches
2 = 2x Conduits
AAA = Standard Build (M20 Conduits with V3 Mechanical Mirco Switches TOP / BOTTOM)
AR2 = Current certified revision

The Westlock AccuTrak 2600 Series rotary position monitors are certified to Exd, flameproof and specifically engineered for hazardous environments. Available with a range of sensors and switches to choose from, the flameproof design meets a wide range of worldwide approvals. Its touch set cams are hand adjustable, spring loaded and self locking, thereby providing quick calibration and installation.

If mounting this unit onto an actuator you will also require an additional mounting kit. Take a look at Westlock’s Mounting Kits, available in 3 size options.
