316SB-STM-020-AAA Westlock Controls Silver Bullet

Description

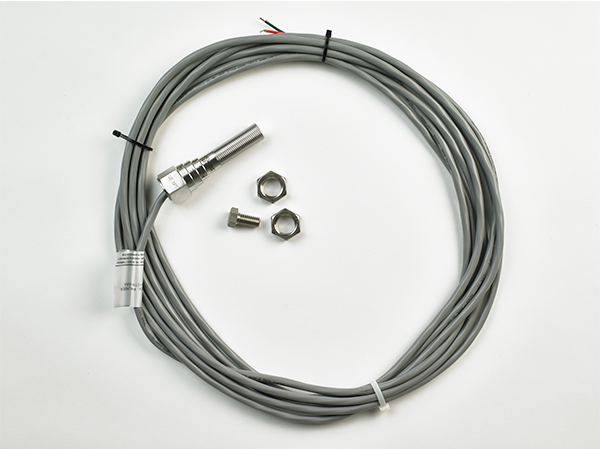

316SB-STM-020-AAA Westlock Controls AccuTrak Silver Bullet Series. Single Pole Double Throw. Tungsten Connection: M20, Lead: 20ft Cable Jacket: PVC. Also included in the pack are 2x jam nuts plus the Westlock standard trigger bolt (3/8-16X.750 (N-POLE FACING OUT (with 3/4″ Length Thread – Maximum Sensing Distance 0.1 inch, 316 Stainless Steel). Certification: Atex Exd IIC / IECEx Exd IIC / NEC500 I,1,B,C&D.

316SB-STM-020-AAA

316 = 316 Grade Stainless Steel
SB = Silver Bullet (Standard Temp (standard trigger bolt)
S = Single Pole Double Throw
M = M20 Conduit Connection (F)
020 = 20FT Cable (6 meters)
AAA = Atex Exd IIC / IECEx Exd IIC / NEC500

The Westlock AccuTrak Silver Bullets are hermetically sealed linear position switches. However, being certified explosion proof to several worldwide standards these are perfect for arduous industrial applications and environmental exposure. Highly resistant to shock, vibration stresses and chemicals these units are ideal substitutions when a standard switchbox fitting proves too costly or impractical to install. Available off the shelf in several cable lengths, these can be trimmed to suit the required final length.

Looking for a shorter cable length than 20ft? No problem… simply trim the PVC fitted cable down at point of installation.
