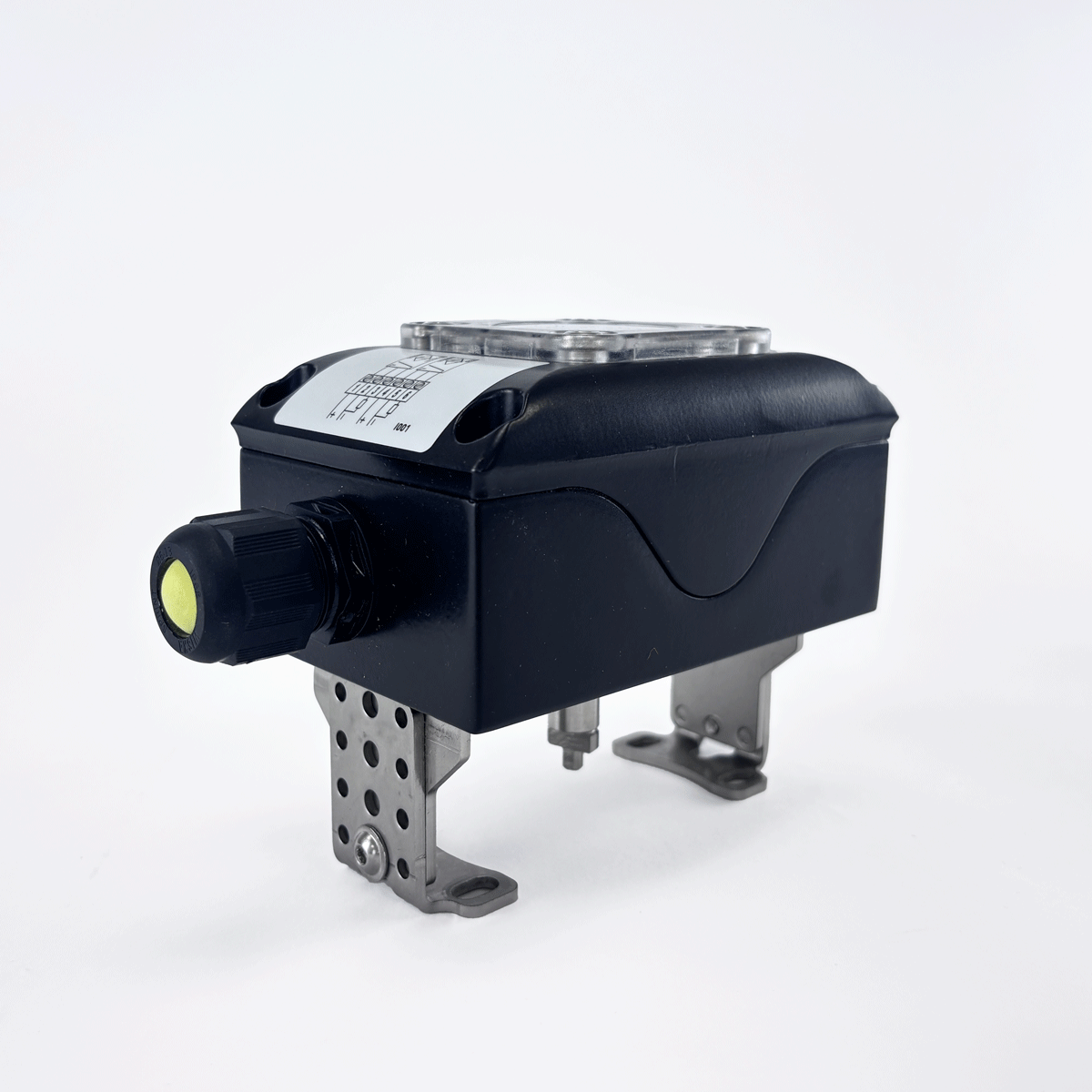

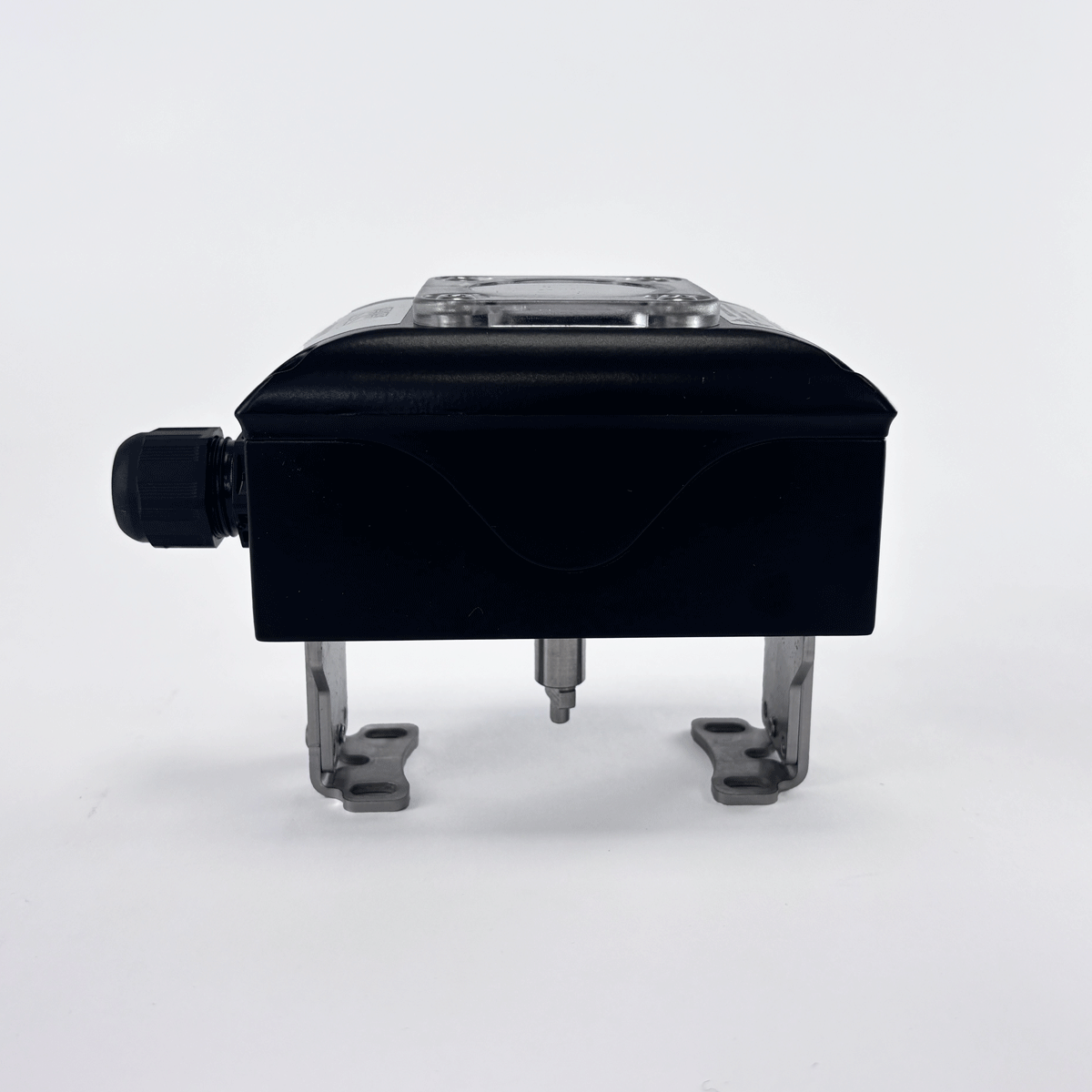

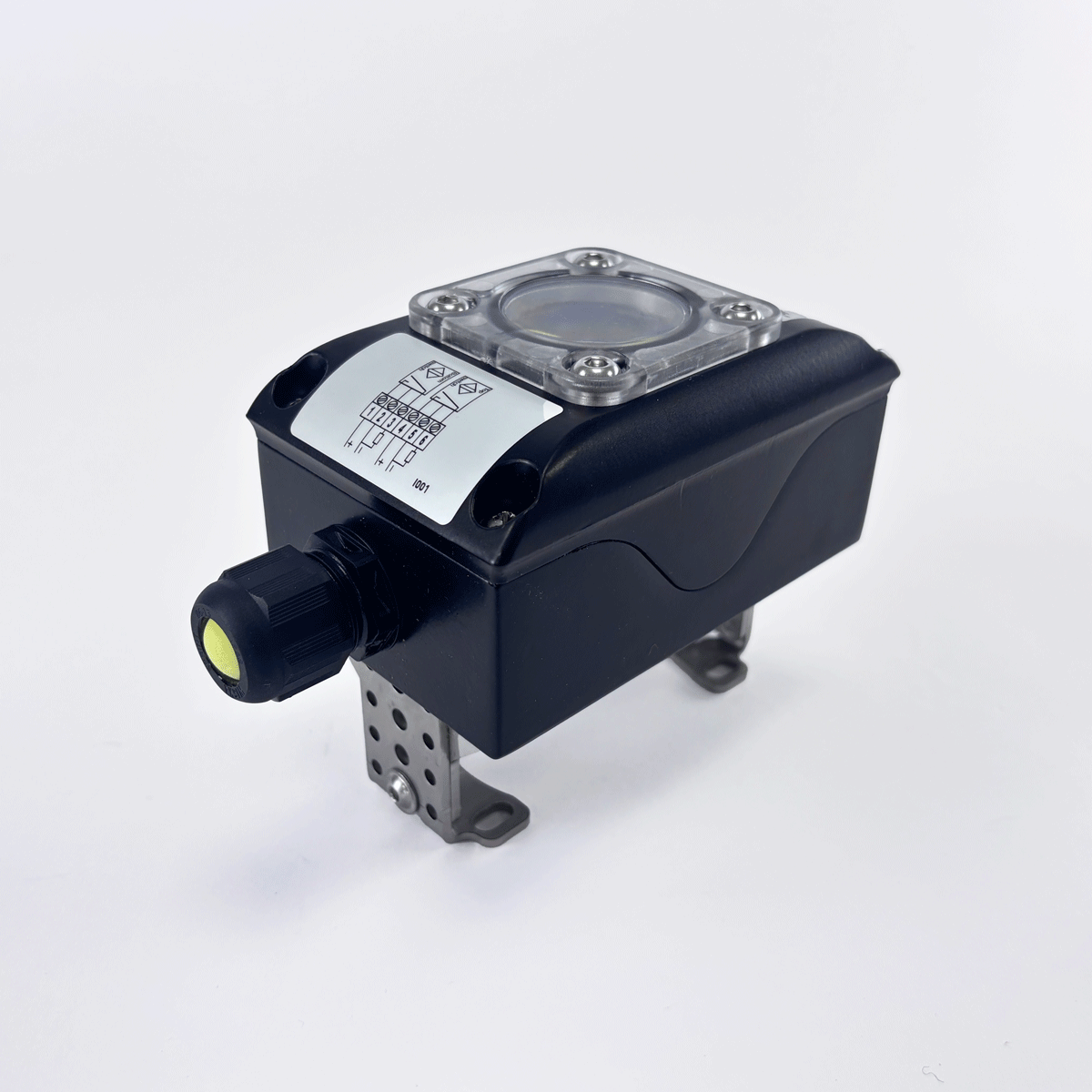

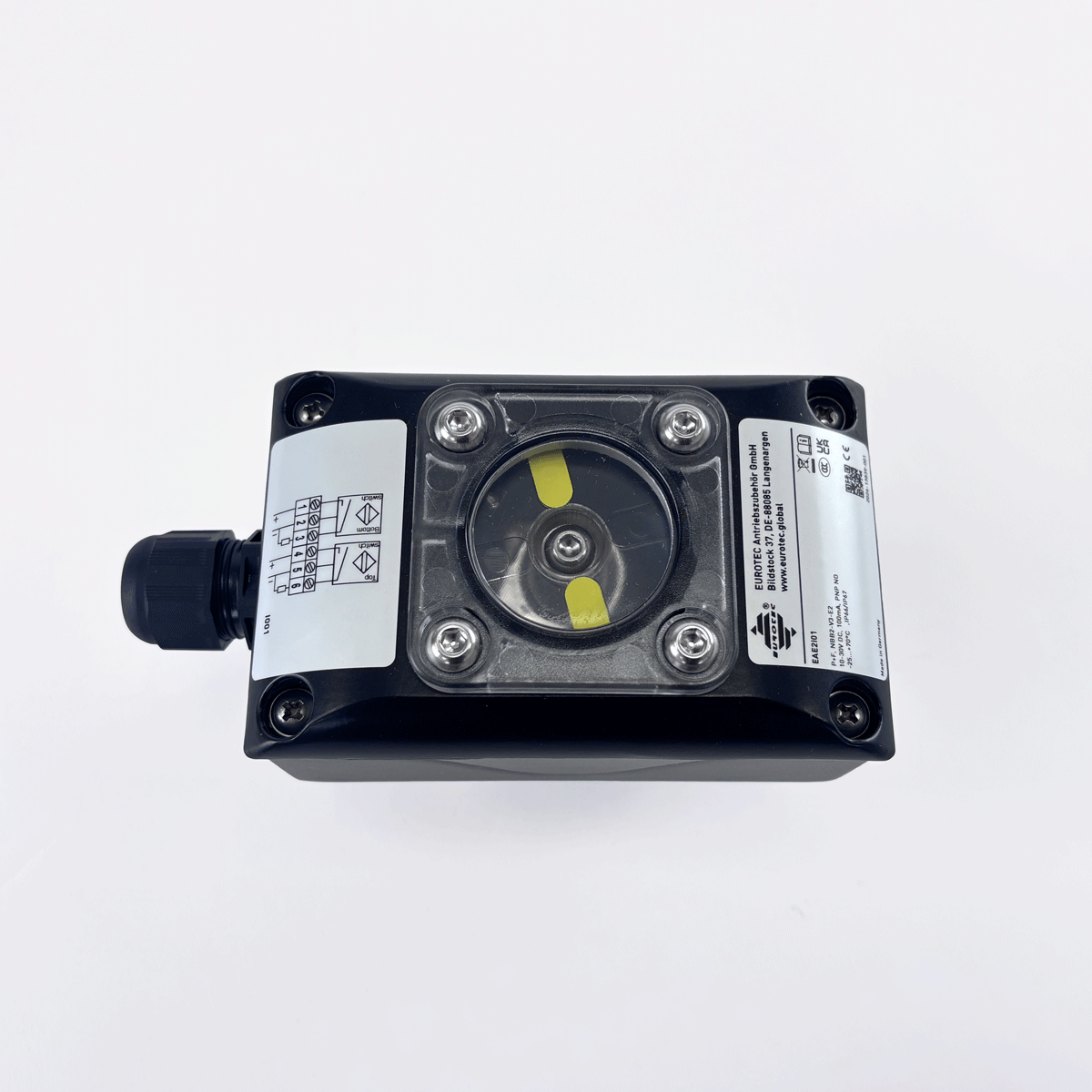

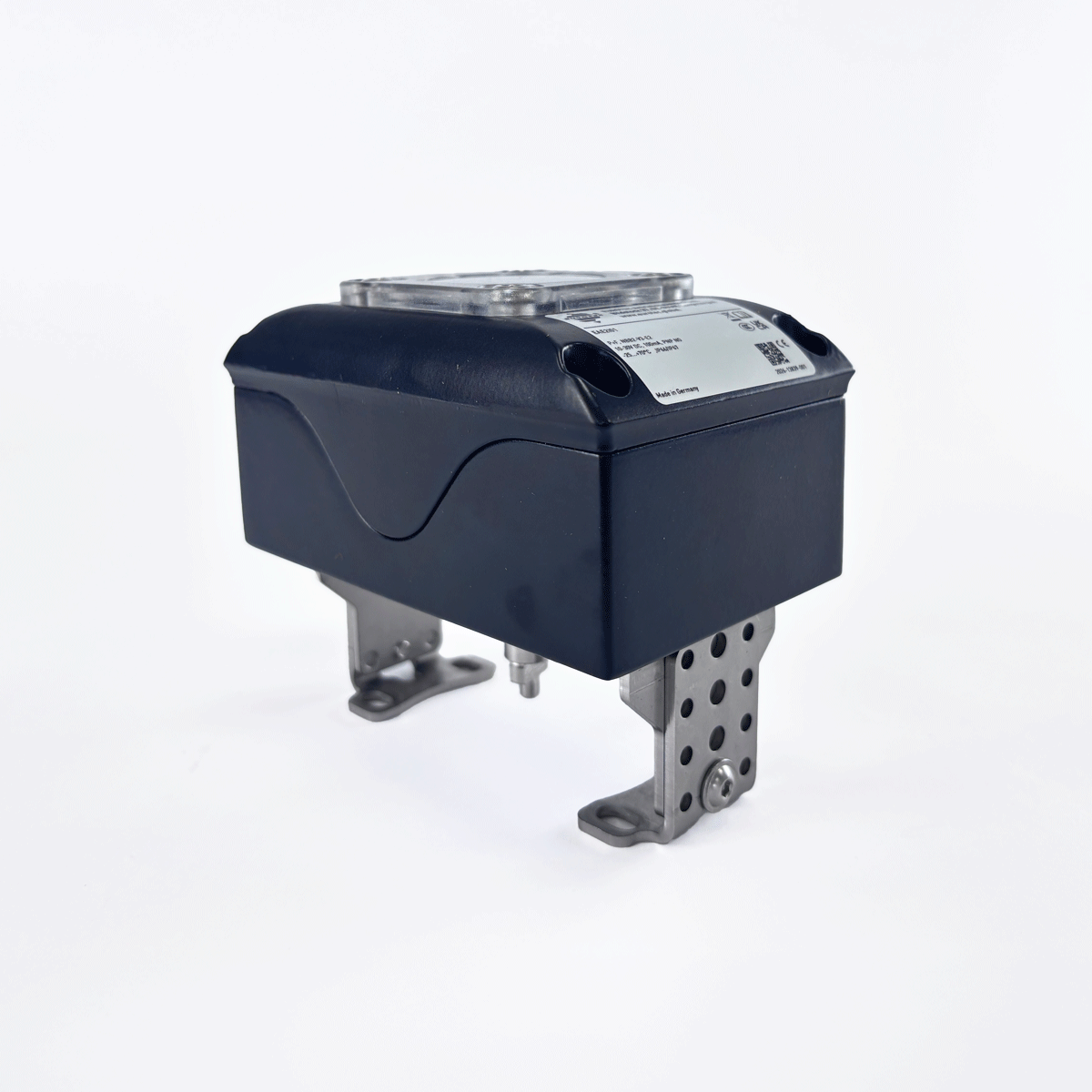

Eurotec EAE2I01 Wave Series Limit Switchbox
£126.00 plus VAT
Only 1 left in stock
Description
The Eurotec EAE2I01 Wave Series Limit Switchbox is a durable and precise valve position feedback unit designed for industrial automation and process control applications. Engineered with a rugged aluminium enclosure and rated to IP66/IP67, it provides reliable performance in demanding environments, including outdoor, washdown, and dusty conditions.
The switchbox features a NAMUR stainless steel shaft and an adjustable stainless steel mounting bracket, ensuring smooth operation, corrosion resistance, and compatibility with a wide range of quarter-turn actuators. Its compact design supports easy installation and long-term stability.
Equipped with a Pepperl+Fuchs NBB2-V3-E2 inductive proximity sensor, the EAE2I01 delivers accurate, non-contact end-position detection. With a PNP normally open output and an operating range of 10–30 V DC at up to 100 mA, it integrates seamlessly into modern control systems and safety loops. The device also supports SIL 1–3 requirements, making it suitable for safety-related applications.
A factory-installed M20×1.5 cable gland ensures secure and efficient field wiring.
Additional information
Related products

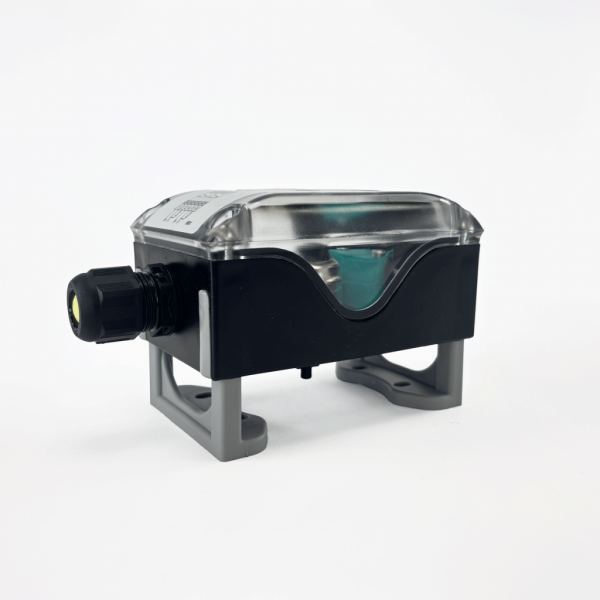

Eurotec EPP2I01 Wave Series Limit Switchbox

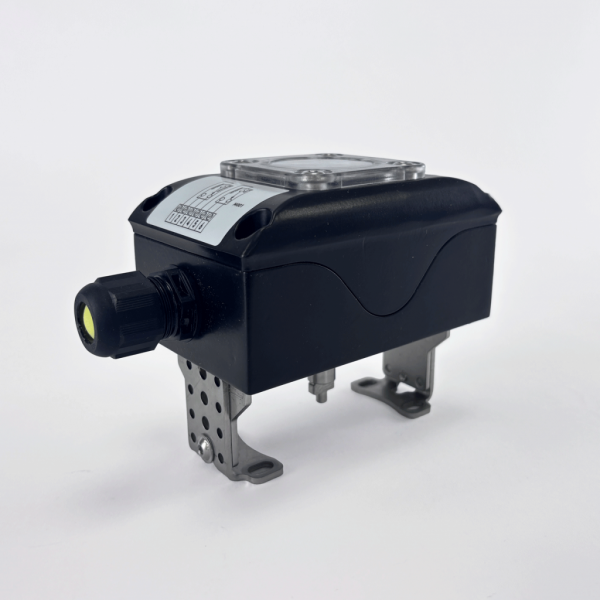

£77.00 plus VAT Add to cartEurotec EAE2M01 Wave Series Limit Switchbox
